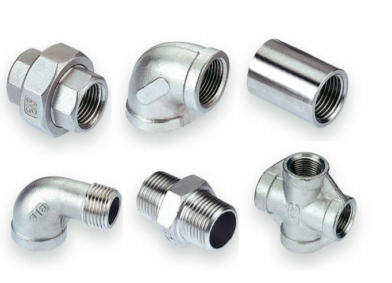

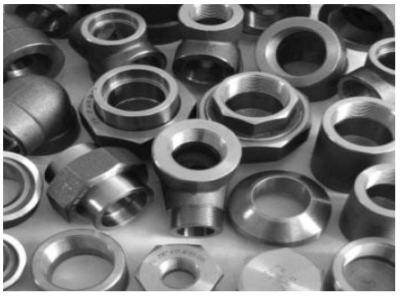

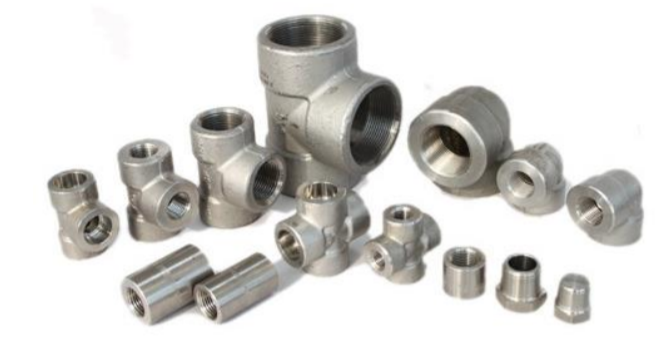

Screwed And Forged Fittings
| SCREWED & FORGED FITTINGS | |
|---|---|
| Name | SCREWED & FORGED FITTINGS |
| Stainless Steel | 202/304/304L/304H/316/317/317L/321/ 310/347/904L etc |
| Carbon Steel | ASTM A53 GR. B/A 106 GR.B / API 5L GRADE B / APIL5 GR.X42/46/52/56/60/65/70/A333 GR.3/ GR.6 etc |
| Others | Monel, Nickel, Inconel, Hastelloy, Duplex and Super Duplex Steel, Titanium, Copper, Brass, Bronze, Bismuth, Aluminium, High Speed Steel, Zinc, Lead etc |
| Alloy Steel | ASTM A 182 F1/ F5/ F9/ F11/ F22/ F91 etc |
| Type | Elbow, Tee, Union, Cross, Coupling, Cap, Bushing, Plug, Swage Nipple, Welding Boss, Hexagon Nipple, Barrel Nipple, Weld Nipple, Parraler Nipple, Street Elbow, Hexagon Nut, Hose Nipple, Bend, Adapter Insert, Weldolet, Elbowlet, Sockolet, Threadolet, Letrolet etc |
| Class | 3000#, 6000#, 9000# |
| Wall Thickness | Sch. 5S to Sch. XXS |
